Item Highlighter
Item Highlighter v1.0.3 is a QGIS plugin developed for INSA Rennes Green Space Service.
---
Features
- Highlight features from up to 10 layers
- Dynamic layer selection
- Dynamic field selection
- Automatic zoom to selected features
- Custom border color
- Custom fill color
- Custom border width
- Save configuration to JSON
- Load configuration from JSON
- Reset configuration
- Support for multiple geometries
---
How it works
1. Configure the plugin

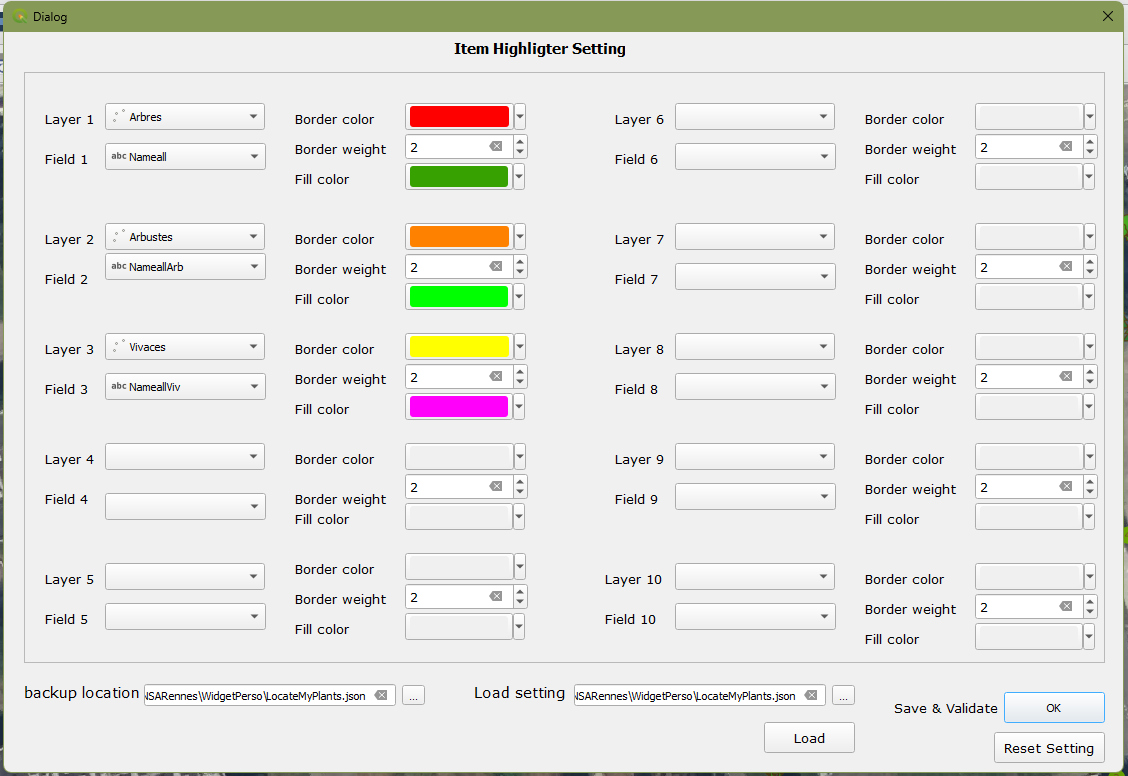

Open the Settings dialog and define:
- Layer
- Attribute field
- Highlight border color
- Highlight fill color
- Highlight border width
Save the configuration to a JSON file.
---
2. Launch Item Highlighter

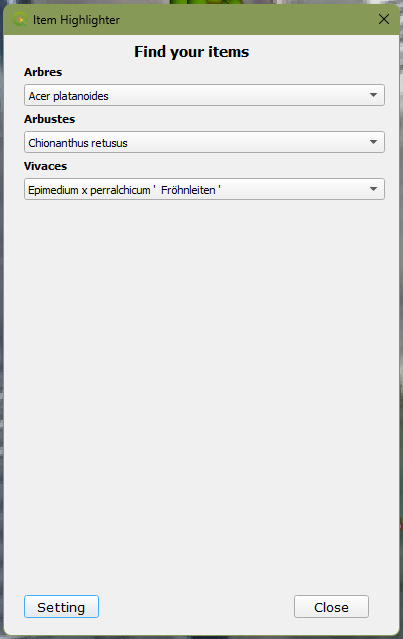

After loading the configuration, the main dialog displays one combobox for each configured layer.
Example:
```text
Trees
[ Oak ▼ ]
Shrubs
[ Rose ▼ ]
Perennials
[ Lavender ▼ ]
```
---

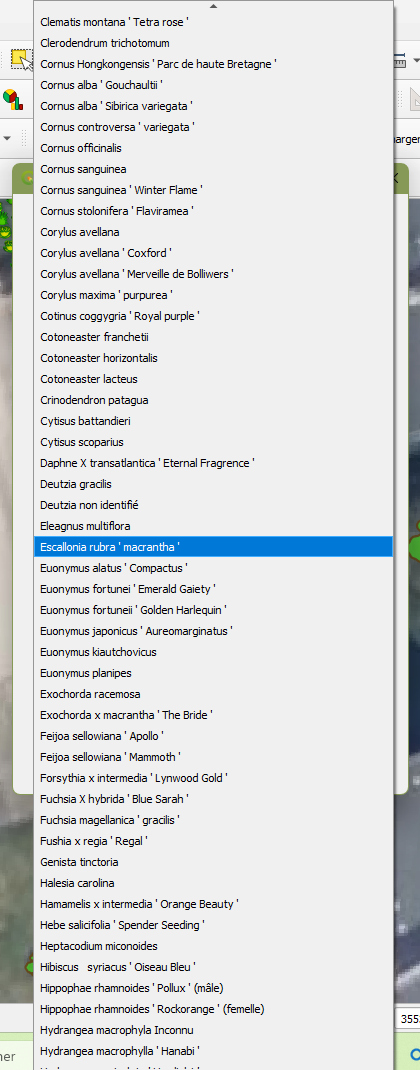

3. Select a value
When a value is selected:
- matching features are searched
- features are highlighted

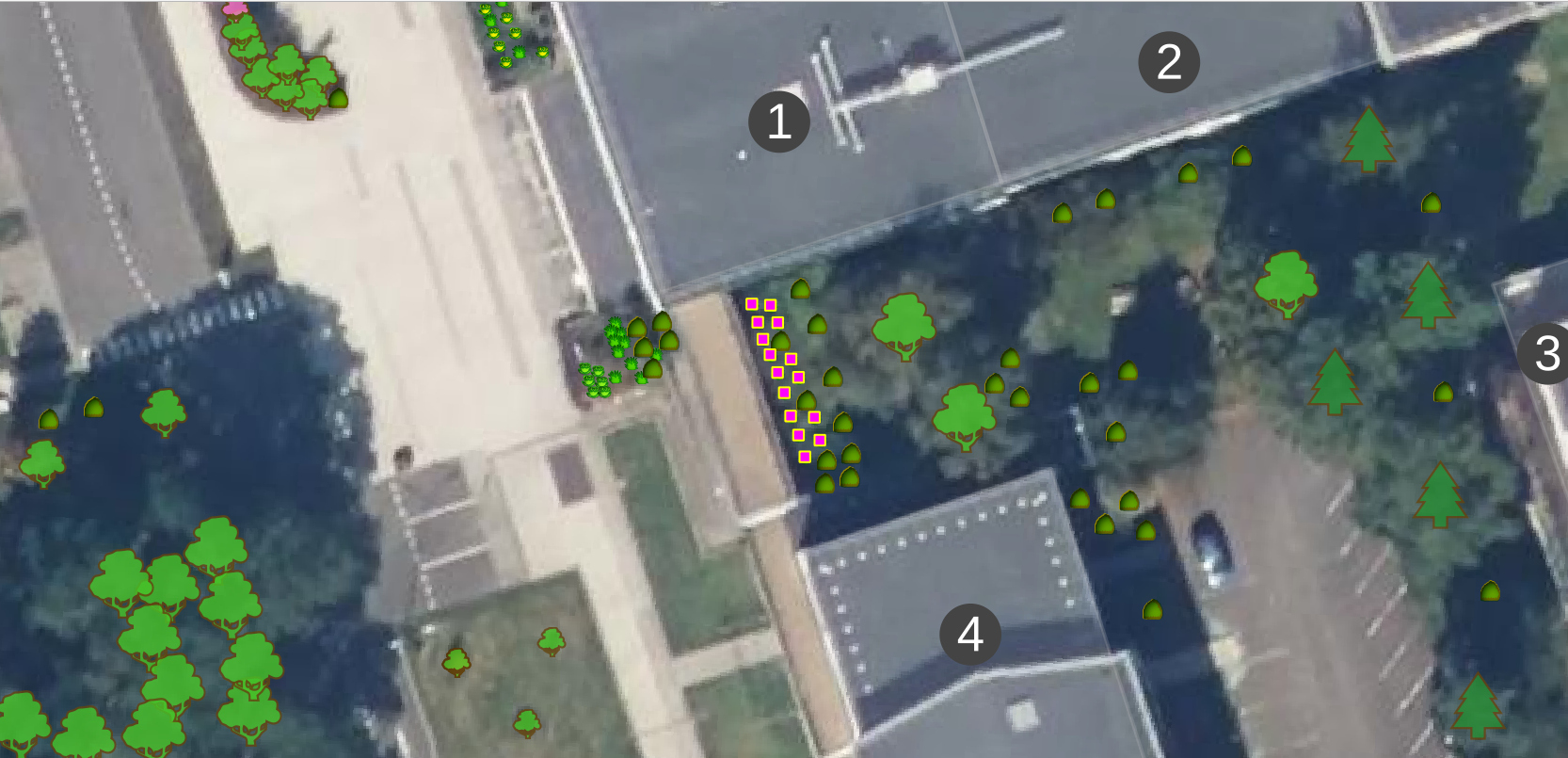

- the map automatically zooms to the selected features
---
Configuration file
Settings are stored in JSON format.
Example:
```json
{
"item_1": {
"layer": "Trees",
"field": "Name",
"borderColor": "#693400",
"fillColor": "#ffb1007b",
"borderWidth": 3
}
}
```
---
Requirements
- QGIS 3.x
- Python 3
- PyQt5
---
Installation
1. Download or clone the repository.
2. Copy the plugin folder into the QGIS plugins directory. For QGIS3 :(C:\Users\"..."\AppData\Roaming\QGIS\QGIS3\profiles\default\python\plugins\item_highlighter)
For QGIS4 :(C:\Users\"..."\AppData\Roaming\QGIS\QGIS4\profiles\default\python\plugins\item_highlighter)
3. Restart QGIS.
4. Enable the plugin from:
```text
Plugins > Manage and Install Plugins
```
---
Usage
1. Open the plugin.
2. Configure layers and fields.
3. Save the settings.
4. Select values from the generated comboboxes.
5. View highlighted features directly on the map canvas.
---
Author
François Thouanel - INSA Rennes - Green Space Service.
---
License
This project is released under the GNU General Public License (GPL v2 or later).
---
Changelog
Version 1.0 Stable
- Dynamic layer configuration
- Dynamic field configuration
- JSON save/load support
- Feature highlighting
- Automatic zoom
- Multi-layer support (up to 10 layers)
- Reset settings feature
- Improved dialog management
Version 1.0.1
- Added QGIS 4 / Qt6 compatibility
- Updated metadata
- Updated changelog
- Fixed Qt5/Qt6 compatibility issues
Version 1.0.2
- try to Fix Qgis plugin repository Qt6 check issues
Version 1.0.3
- Fix the issue where the setting doesn't apply when setting up a new configuration without restarting the plugin.
